Components¶

CascadeUI components extend discord.py's built-in UI components with state dispatching, validation, and composition helpers. They fall into three tiers based on how they interact with the state store -- see Core Concepts -- Component Tiers for the tier-by-tier overview, and Core Concepts -- Extension Strategies for the subclass / builder / wrapper / pattern taxonomy that governs how each section below is built.

Interactive Components¶

These fire COMPONENT_INTERACTION actions on every click or selection.

StatefulButton¶

Extends discord.ui.Button with automatic state dispatching:

from cascadeui import StatefulButton

button = StatefulButton(
    label="Click Me",
    style=discord.ButtonStyle.primary,
    callback=my_handler,
)

In V2 views, buttons must be wrapped in ActionRow:

from discord.ui import ActionRow

self.add_item(ActionRow(
    StatefulButton(label="Save", callback=self.save),
    StatefulButton(label="Cancel", callback=self.cancel),
))

Convenience subclasses: PrimaryButton, SecondaryButton, SuccessButton, DangerButton, LinkButton, ToggleButton.

`owner_only=True` per-button host gate¶

Pairs with view-level owner_only=False to express open-view + host-only-button flows (lobby Start/Disband, ticket Close, poll End). When set, the button callback fires only when interaction.user.id == view.user_id; mismatches route through view.on_unauthorized(interaction) without invoking the callback.

from discord.ui import ActionRow

from cascadeui import StatefulLayoutView, StatefulButton

class LobbyView(StatefulLayoutView):
    owner_only = False  # everyone in the channel can see the lobby

    def build_ui(self):
        self.clear_items()
        self.add_item(ActionRow(
            StatefulButton(label="Join", callback=self.join),
            StatefulButton(
                label="Start",
                callback=self.start,
                owner_only=True,  # only the lobby host
            ),
        ))

Anonymous views (no view.user_id) skip the gate entirely so background or system-driven flows still work. Defaults to False, so omitting the kwarg leaves the standard callback contract unchanged.

StatefulSelect¶

Extends discord.ui.Select with state integration:

from cascadeui import StatefulSelect

select = StatefulSelect(
    placeholder="Pick one...",
    options=[
        discord.SelectOption(label="Option A", value="a"),
        discord.SelectOption(label="Option B", value="b"),
    ],
    callback=my_handler,
)

Specialized variants: Dropdown (alias), RoleSelect, ChannelSelect, UserSelect, MentionableSelect.

`set_selected(value)` / `get_selected()`¶

Programmatic state reflection for selects:

# Set which options are marked as default
select.set_selected("a")             # Single value
select.set_selected(["a", "b"])      # Multiple values (max_values > 1)
select.set_selected(None)            # Clear all selections

# Read current selections
selected = select.get_selected()     # Returns list[str]

Values that don't match any existing option are silently ignored, so state-driven rebuilds survive config migrations.

Two-Parameter Callbacks¶

StatefulSelect callbacks may accept an optional second parameter values:

async def on_select(interaction, values):
    selected = values[0]  # list[str] of selected option values
    ...

Detection happens at creation time via inspect.signature. Single-parameter callbacks still work unchanged.

Pre-populated defaults (specialized selects)¶

RoleSelect, UserSelect, ChannelSelect, and MentionableSelect each accept a default_values= constructor kwarg that pre-marks entries as selected when the message first renders. CascadeUI accepts a permissive input shape -- raw int IDs, Discord objects (Role, Member, User, GuildChannel), or pre-built discord.SelectDefaultValue instances -- and wraps each entry with the right type for the select class.

from cascadeui import RoleSelect, UserSelect, MentionableSelect

# Raw int IDs (auto-typed as 'role')
moderator_select = RoleSelect(default_values=[123456789, 987654321])

# Discord.Member objects (auto-typed as 'user')
admin_select = UserSelect(default_values=[ctx.guild.owner])

# MentionableSelect requires typed objects -- bare ints rejected
mention_select = MentionableSelect(
    default_values=[
        ctx.guild.get_role(role_id),       # auto-typed as 'role'
        ctx.guild.get_member(user_id),     # auto-typed as 'user'
    ],
)

Update defaults after construction with set_default_values(values), which accepts the same input shape and replaces the existing list:

select.set_default_values([new_id_1, new_id_2])
select.set_default_values([])     # clear all defaults
select.set_default_values(None)   # clear all defaults

MentionableSelect cannot infer type from a bare int (could be either user or role), so raw IDs are rejected with a TypeError naming the supported input shapes. Callers who only have IDs construct discord.SelectDefaultValue(id=..., type='user') (or 'role') explicitly and pass that.

Passing Context to Callbacks¶

Use closures or functools.partial to pass extra data:

def _make_move(self, cell: int):
    async def callback(interaction):
        self.board[cell] = self.current_mark
        self.build_ui()
        await self.refresh()
    return callback

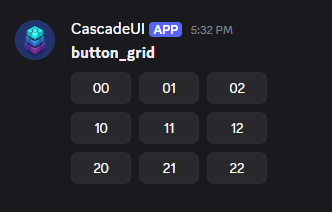

# Each button gets a unique callback with a different `cell`
for i in range(9):
    button = StatefulButton(label=self.board[i], callback=self._make_move(i))

These live inside Modal dialogs. They have custom_id attributes but is_dispatchable = False -- values are collected by the Modal on submit. All five share the same contract:

custom_id derived from label via TextInput._slug()
Optional validators list auto-collected by Modal
Value write-back: .value or .values populated after submit
Each renders as a discord.ui.Label wrapping the inner input. The label string moves to Label.text; an optional description= kwarg populates Label.description for a secondary helper line beneath the title. The Modal's child tree carries the ui.Label wrappers directly; CascadeUI unwraps them internally during submit collection.

TextInput¶

Wraps discord.ui.TextInput:

from cascadeui import TextInput

name = TextInput(label="Name", placeholder="Enter your name")
bio = TextInput(label="Bio", style=discord.TextStyle.long)

After submit: name.value → str.

Validators are attached directly:

from cascadeui import TextInput, min_length, regex

name = TextInput(
    label="Username",
    description="Lowercase letters, numbers, and underscores only.",
    validators=[
        min_length(3),
        regex(r"^[a-zA-Z0-9_]+$", "Alphanumeric only"),
    ],
)

The description= kwarg renders as Label.description -- a secondary helper line beneath the field title. Available on all five wrapped input types (TextInput, Checkbox, CheckboxGroup, RadioGroup, FileUpload).

Checkbox¶

Wraps discord.ui.Checkbox -- a single boolean toggle:

from cascadeui import Checkbox

agree = Checkbox(label="I agree to the terms", default=False)

After submit: agree.value → bool.

CheckboxGroup¶

Wraps discord.ui.CheckboxGroup -- multi-select with labeled options:

from cascadeui import CheckboxGroup

roles = CheckboxGroup(
    label="Preferred Roles",
    options=[
        {"label": "Tank", "value": "tank"},
        {"label": "DPS", "value": "dps"},
        {"label": "Support", "value": "support", "default": True},
    ],
    min_values=1,
    max_values=3,
)

Options accept dict shorthand (shown above) or native discord.CheckboxGroupOption instances. After submit: roles.values → list[str].

RadioGroup¶

Wraps discord.ui.RadioGroup -- single-select with labeled options:

from cascadeui import RadioGroup

difficulty = RadioGroup(
    label="Difficulty",
    options=[
        {"label": "Easy", "value": "easy"},
        {"label": "Normal", "value": "normal", "default": True},
        {"label": "Hard", "value": "hard"},
    ],
)

Same dict shorthand as CheckboxGroup. After submit: difficulty.value → str.

FileUpload¶

Wraps discord.ui.FileUpload:

from cascadeui import FileUpload

upload = FileUpload(label="Avatar", max_values=1)

After submit: upload.values → list[discord.Attachment].

Ephemeral attachment URLs

discord.Attachment objects contain CDN URLs that expire. Read attachment data in the modal callback -- do not store attachments in the state store.

Modal collects all wrapped input types and handles submission:

from cascadeui import Modal, TextInput, Checkbox

name = TextInput(label="Name")
agree = Checkbox(label="Agree to terms")

async def handle(interaction, values):
    print(name.value, agree.value)
    await interaction.response.send_message("Done!", ephemeral=True)

modal = Modal(title="Registration", inputs=[name, agree], callback=handle)
await self.open_modal(interaction, modal)

Inside a CascadeUI view callback, use self.open_modal() instead of interaction.response.send_modal(). It handles the case where auto-defer has already consumed the response slot. See Opening Modals from Callbacks.

After submit, each input's .value / .values is populated. modal.values_by_input provides a dict keyed by input instance.

Validators from all inputs are auto-collected. If any fail, the modal responds with error messages and blocks submission.

Pass view_id=self.id to dispatch a MODAL_SUBMITTED action for state tracking.

Custom Emoji¶

CascadeUI accepts the same emoji forms as discord.py everywhere a component takes an emoji= argument. The type alias EmojiInput (exported from cascadeui.components.types) is Optional[Union[str, discord.Emoji, discord.PartialEmoji]] and matches the union accepted by discord.ui.Button and discord.SelectOption.

Three string forms¶

Form	Example	Source
Unicode	`"⚙️"` or its Python escape form	Standard Unicode emoji
Custom static	`"<:fire:1234567890123456789>"`	Guild-owned or application-owned static emoji
Custom animated	`"<a:dance:1234567890123456789>"`	Guild-owned or application-owned animated emoji

discord.py parses all three at the component boundary via PartialEmoji.from_str. A live discord.Emoji instance (returned by bot.get_emoji or bot.fetch_application_emoji) and a discord.PartialEmoji are accepted directly; str(emoji_obj) produces the matching <:name:id> form when a plain string is required.

Where emoji are accepted¶

Surface	Slot
`StatefulButton(emoji=...)`	inherited from `discord.ui.Button`
`StatefulSelect` option dicts	`"emoji"` key

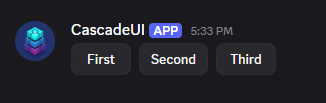

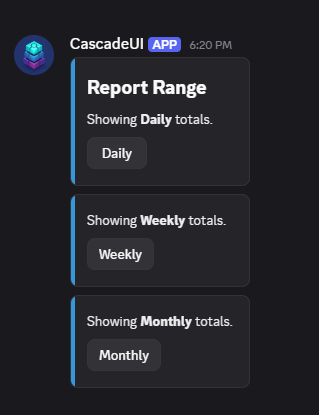

`action_section`, `toggle_section`, `link_section`, `button_row`, `cycle_button`, `toggle_button`	`emoji=` kwarg
`confirm_section`	`confirm_emoji=` / `cancel_emoji=`

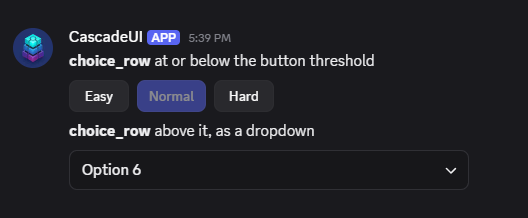

`choice_row`	per option via `Choice(emoji=...)`; the `{label: value}` dict form has no emoji slot
`MenuView` / `MenuLayoutView` category dicts	`"emoji"` key
`RoleCategory(icon=...)`	rendered as a markdown prefix in the category header
`RolesLayoutView` / `PersistentRolesLayoutView`	`format_button_emoji` classmethod returns `EmojiInput`
`LeaderboardLayoutView.podium_emojis`	rank → string used in markdown
`WizardLayoutView`	`back_button_emoji`, `next_button_emoji`, `finish_button_emoji`
`PaginatedLayoutView`	`first_button_emoji` through `last_button_emoji`
`FormLayoutView`	`text_edit_button_emoji`
`with_loading_state(loading_emoji=...)`	wrapper kwarg
Refresh handoff (any view)	`refresh_button_emoji`

Application-owned emojis¶

Custom guild emojis only render where the bot is currently a member of the source guild. For bots deployed across many independent guilds, guild-owned assets stop rendering once the bot leaves the guild that owns them. discord.py supports application-owned emojis: emoji uploaded directly to the bot's application, which render everywhere the bot operates and never expire on guild membership changes.

# One-time setup. Run once, capture the IDs in config.
import discord

bot = discord.Client(intents=discord.Intents.default())

@bot.event
async def on_ready():
    with open("fire.png", "rb") as f:
        emoji = await bot.create_application_emoji(name="fire", image=f.read())
    print(f"Created: {emoji} (id={emoji.id})")
    await bot.close()

bot.run("TOKEN")

Reference the captured ID in any emoji= slot:

FIRE_EMOJI = "<:fire:1234567890123456789>"  # captured from the setup run

self.add_item(action_section(
    "Activate trial",
    label="Start",
    emoji=FIRE_EMOJI,
    callback=self._start,
))

Client.fetch_application_emojis() lists existing application emojis and fetch_application_emoji(emoji_id) retrieves one by ID. Both return discord.Emoji instances; the rendering pipeline treats them identically to guild emojis.

Pitfalls¶

Missing angle brackets. Typing ":fire:1234567890123456789" instead of "<:fire:1234567890123456789>" parses as a unicode emoji name and renders as literal text.
Short emoji IDs fall through to unicode. discord.py's parser requires 13 to 20 digits for the ID portion of a custom emoji string. Real Discord snowflakes are 17 to 19 digits. Anything shorter is treated as a unicode emoji name and renders as literal text -- this catches shortened placeholder values copied without substitution.
Wrong emoji ID. Discord renders unknown IDs as a placeholder glyph; no exception is raised. Verify IDs match a real emoji in the source guild or application.
Bot not in source guild. A guild-owned custom emoji string only renders when the bot is currently a member of the guild that owns the emoji. Application emojis avoid this entirely.
Animated flag. Static custom emoji use <:name:id> with no leading a. Animated use <a:name:id>. Mismatching the flag against the actual asset shows a static frame.

V2 Builder Functions¶

Convenience functions for building V2 component trees. All return standard discord.py components.

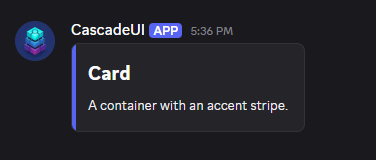

`card(*children, color=None, spoiler=False)`¶

Creates a Container. Strings are auto-wrapped in TextDisplay. Pass spoiler=True to hide the whole container behind a spoiler overlay:

from cascadeui import card, divider
from discord.ui import TextDisplay

self.add_item(card(
    "## My Card",
    TextDisplay("Card content."),
    divider(),
    TextDisplay("-# Footer"),
    color=discord.Color.blurple(),
))

`key_value(data)`¶

Converts a dict to a formatted TextDisplay:

from cascadeui import key_value

self.add_item(key_value({"Status": "Online", "Users": "42"}))
# Renders: **Status:** Online\n**Users:** 42

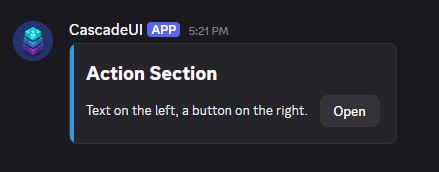

`action_section(text, *, label, callback, ...)`¶

A Section with text and a button accessory. Pass disabled=True to render the button greyed out and non-interactive:

from cascadeui import action_section

self.add_item(action_section(
    "Click to refresh the dashboard",
    label="Refresh", callback=self.refresh_data, emoji="🔄",
))

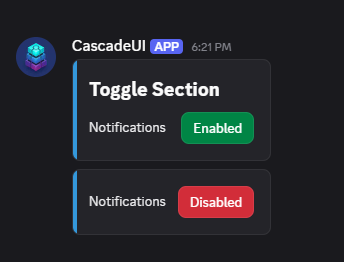

`toggle_section(text, *, active, callback, labels=("Enabled", "Disabled"), emoji=None)`¶

A Section with a green/red toggle button. labels sets the (active, inactive) button text -- pass ("On", "Off") to relabel -- and emoji adds a button emoji. Pass disabled=True to render the button greyed out and non-interactive:

from cascadeui import toggle_section

self.add_item(toggle_section(
    "**Dark Mode**\nEnable dark theme",
    active=self.dark_mode, callback=self.toggle_dark,
))

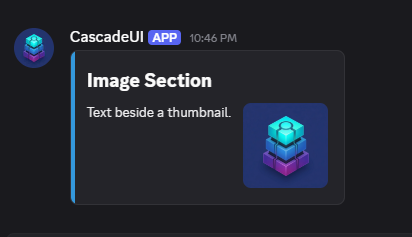

`image_section(text, *, url, description=None, spoiler=False)`¶

A Section with a Thumbnail image. url accepts a remote URL string, the attachment://name.ext form, or a discord.File instance whose .uri is read internally. description sets the thumbnail's alt text (up to 256 chars); spoiler=True hides it behind a spoiler. See Local file attachments.

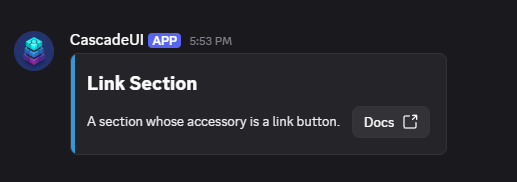

`link_section(text, *, label, url, emoji=None)`¶

A Section with a link-style button accessory. Completes the *_section family for the three Section accessory shapes: action (StatefulButton), image (Thumbnail), and link. Link buttons open a URL directly -- no callback runs and no interaction fires.

from cascadeui import link_section

self.add_item(link_section(
    "Full documentation is on GitHub Pages.",
    label="Open Docs",
    url="https://hollowthesilver.github.io/CascadeUI/",
))

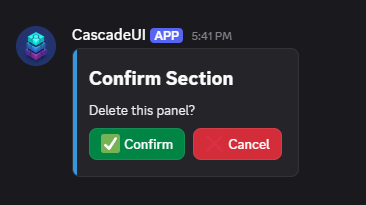

`confirm_section(text, *, on_confirm, on_cancel, ...)`¶

Returns a [TextDisplay, ActionRow] list rather than a single component so the caller can splat it into card(...). The paired success/danger buttons run the supplied callbacks:

from cascadeui import card, confirm_section

self.add_item(card(
    "## Delete Server Data",
    *confirm_section(
        "This cannot be undone.",
        on_confirm=self._do_delete,
        on_cancel=self._do_cancel,
        confirm_label="Delete",
    ),
    color=discord.Color.red(),
))

Defaults: confirm button is green with a check emoji, cancel is red with a cross emoji. Override any of confirm_label, cancel_label, confirm_emoji, cancel_emoji to customize.

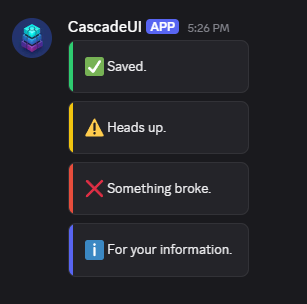

`alert(message, *, level="info")`¶

A colored status container:

Level	Color
`"success"`	Green
`"warning"`	Gold
`"error"`	Red
`"info"`	Blue

`stats_card(title, stats, *, color=None, footer=None)`¶

Thin composition of card(title, key_value(stats), ...). The title is rendered as a second-level heading automatically (pre-format with ## for finer control), a small separator sits between the heading and the stats, and an optional footer line renders in Discord's subtext style:

from cascadeui import stats_card

self.add_item(stats_card(
    "Server Overview",
    {"Members": 42, "Channels": 12, "Roles": 5},
    color=discord.Color.green(),
    footer="Updated just now",
))

When color is omitted, the active theme's accent_colour is used automatically inside a view's build_ui().

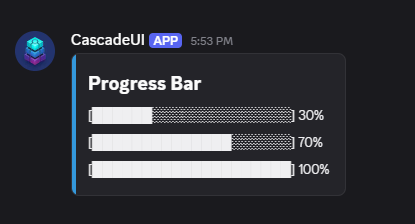

`progress_bar(value, max_value, *, width=20, ...)`¶

Text-based progress bar returned as a TextDisplay. V2 equivalent of the V1 ProgressBar composite. Renders [████████████░░░░░░░░] 60% by default with Unicode block glyphs. value is clamped to [0, max_value] so callers do not need to guard against overshoots.

from cascadeui import progress_bar

self.add_item(progress_bar(7, 10, width=10))  # [███████░░░] 70%

Override filled / empty for alternative glyphs, or set show_percent=False to drop the trailing percentage.

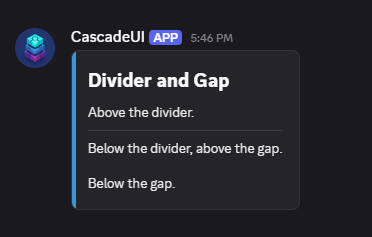

`divider()` and `gap(large=False)`¶

divider() creates a thin line separator. gap() creates spacing without a visible line.

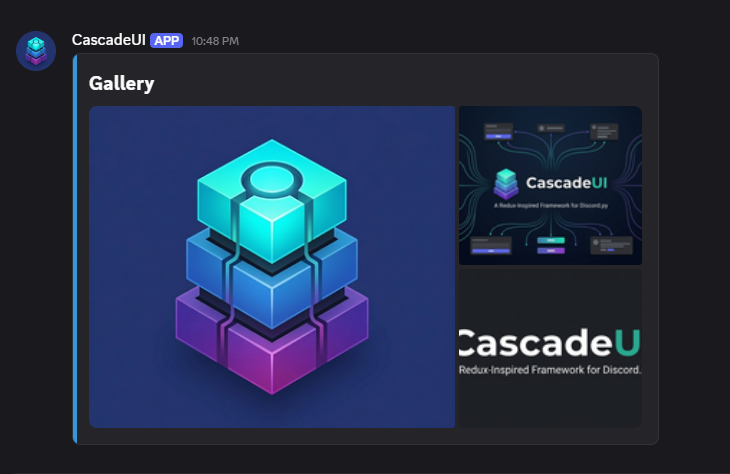

`gallery(*media, descriptions=None)`¶

A MediaGallery from one or more image references. Each reference is either a URL string, the attachment://name.ext form, or a discord.File instance whose .uri is read internally. See Local file attachments for the send-time pairing.

`file_attachment(url, *, spoiler=False)`¶

A File component for inline attachment display. Accepts either a remote URL, the attachment://name.ext form, or a discord.File instance:

from cascadeui import card, file_attachment

card(
    "## Quarterly Report",
    file_attachment("attachment://q1_2026.pdf"),
    "Released April 15.",
)

Use file_attachment for downloadable files; use gallery for inline image previews.

`button_row(buttons, *, style=..., emoji=None)`¶

Builds an ActionRow from a {label: callback} mapping. Dict insertion order determines button order, so every button in the row shares one style and emoji:

from cascadeui import button_row

self.add_item(button_row(
    {
        "Save": self._save,
        "Reset": self._reset,
        "Cancel": self._cancel,
    },
    style=discord.ButtonStyle.primary,
))

Raises ValueError if the mapping is empty or exceeds Discord's 5-buttons-per-row limit. For per-button customization, build the ActionRow by hand.

`choice_row(options, *, on_select, selected=None, multi=False, ...)`¶

A "pick one" (or "pick any") control. Where button_row gives N buttons each with its own callback and no notion of a current selection, choice_row gives N options that share one on_select and tracks which is active: the active option renders highlighted, and in single-select it is also disabled so re-picking it is a no-op. Pass a {label: value} dict for the common case, or a list of Choice when an option needs an emoji or a dropdown description:

from cascadeui import choice_row

# inside your StatefulLayoutView.build_ui():
self.add_item(choice_row(
    {"Easy": Difficulty.EASY, "Normal": Difficulty.NORMAL, "Hard": Difficulty.HARD},
    selected=self.difficulty,
    on_select=self._set_difficulty,   # async (interaction, value) -> None
))

When the option count outgrows a button row (more than button_threshold, default 5), choice_row renders a dropdown instead -- up to Discord's 25-option select limit (exported as MAX_SELECT_OPTIONS), past which it raises. Discord requires select option values to be strings; the builder maps to and from that form, so on_select always receives the real Python value, never a stringified index.

Set multi=True to let several options be active at once. selected becomes a set, the buttons become toggles (no disabled state, since an active option must be clickable to turn it off), and on_select receives the full list of selected values. Two choice_row controls in one view need distinct custom_id= values so their components do not collide.

The host owns the selection -- rebuild after on_select

choice_row is stateless: it reads selected at build time and renders the active option(s) from it. Your on_select callback must store the new value and rebuild the row -- build_ui() then refresh(), or a state dispatch that triggers on_state_changed. Without a rebuild, the control snaps back to the build-time selection on the next click.

Tip

Reach for a raw StatefulSelect when you need custom min_values / max_values, or a select type other than text (role, user, channel). choice_row covers the common "pick from a fixed set of values" shape.

`cycle_button(*, values, on_change, ...)`¶

A button that cycles through a fixed list of values. The button tracks its own index on the returned instance (button._cycle_index); clicking advances to the next value (wrapping) and updates the label before the on_change callback runs:

from cascadeui import cycle_button

async def _preset_changed(interaction, value):
    self.preset = value
    self.build_ui()
    await self.refresh()

self.add_item(ActionRow(cycle_button(
    values=["Low", "Medium", "High"],
    on_change=self._preset_changed,
    emoji="⚙️",
)))

The callback receives the new value (post-advance). Optional labels= customizes the display strings, start= picks the initial index.

`toggle_button(*, active, on_toggle, ...)`¶

Standalone boolean toggle button. Distinct from toggle_section, which wraps the same button shape in a Section with display text on the left. Use toggle_button when the button stands alone in an ActionRow:

from cascadeui import toggle_button

async def _dark_mode(interaction, active):
    self.dark = active
    self.build_ui()
    await self.refresh()

self.add_item(ActionRow(toggle_button(
    active=self.dark,
    on_toggle=_dark_mode,
    labels=("Dark", "Light"),
)))

The button flips its own state (button._toggle_active) and calls on_toggle(interaction, new_state) with the post-flip value. Style and label swap automatically between the active/inactive pair.

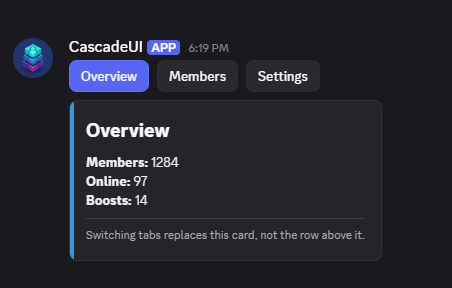

`tab_nav(tabs, *, active=None, ...)`¶

Lighter alternative to TabLayoutView for views that want tab-style navigation without the full Tab pattern's lifecycle (async builders, on_tab_switched, refresh contract). Each tab is just a button the view handles in its own callback:

from cascadeui import tab_nav

self.add_item(tab_nav(
    {
        "Stats": self._show_stats,
        "Settings": self._show_settings,
        "Help": self._show_help,
    },
    active="Stats",
))

The tab matching active renders with active_style (primary by default); all others render with inactive_style (secondary). If active is omitted, the first tab is marked active. Capped at Discord's 5-per-row limit -- use TabLayoutView for views that need more tabs.

Local file attachments¶

V2 builders that take a media reference (gallery, image_section, file_attachment) accept three input shapes:

A remote URL ("https://cdn.example.com/img.png")
The attachment://<filename> reference scheme, when the file travels with the message as a discord.File
A discord.File instance directly -- the builder reads its .uri property and emits the same attachment://<filename> reference

The reference and the bytes are independent: the builder emits the reference into the component tree; the discord.File carries the bytes to Discord.

Both halves must travel together

An attachment://<filename> reference inside a builder is meaningless on its own. The matching discord.File must reach the same payload via view.send(files=[...]) (initial send) or view.refresh(attachments=[...]) (in-place edit), or Discord renders the reference as an unresolved placeholder.

Initial send¶

StatefulView.send() and StatefulLayoutView.send() accept file= (singular) and files= (sequence) for the initial upload:

import discord
from cascadeui import StatefulLayoutView, card, gallery

class GalleryView(StatefulLayoutView):
    def __init__(self, *, photo_uri: str, **kwargs):
        super().__init__(**kwargs)
        self.add_item(card("## Gallery", gallery(photo_uri)))

photo = discord.File("assets/photo.png")
view = GalleryView(context=ctx, photo_uri=photo.uri)
await view.send(files=[photo])

Mixing file= and files= raises TypeError from discord.py at the send boundary. If the send fails before the bytes reach Discord, the library closes the supplied file handles as part of its rollback so callers do not leak file pointers.

Fetching remote assets¶

For attachments sourced from a URL (avatars, CDN-hosted images, attachment proxy URLs), cascadeui.fetch_as_file() absorbs the standard aiohttp GET + BytesIO + discord.File construction:

from cascadeui import fetch_as_file

photo = await fetch_as_file(
    ctx.author.display_avatar.url,
    "avatar.png",
)
await view.send(files=[photo])

Pass a shared session= for any command that fetches multiple URLs so the requests share one TCP pool:

import aiohttp

async with aiohttp.ClientSession() as session:
    photo_a = await fetch_as_file(url_a, "a.png", session=session)
    photo_b = await fetch_as_file(url_b, "b.png", session=session)
await view.send(files=[photo_a, photo_b])

fetch_as_file forwards spoiler= and description= to the discord.File constructor, so attachment metadata travels through the helper without an extra wrapper. See examples/v2_attachments.py for a runnable four-command walkthrough.

Mid-session attachment swaps¶

view.refresh() forwards arbitrary kwargs to the underlying message.edit() call, so a swap goes through the standard attachments= parameter -- a replacement list, not additive. Pair it with build_ui() so the component tree rebuilds against the new reference at the same time the new bytes ship:

class GalleryView(StatefulLayoutView):
    def __init__(self, *, photo_uri: str, **kwargs):
        super().__init__(**kwargs)
        self._photo_uri = photo_uri
        self.build_ui()

    def build_ui(self):
        self.clear_items()
        self.add_item(card("## Gallery", gallery(self._photo_uri)))

    async def swap_photo(self, new_photo: discord.File):
        self._photo_uri = new_photo.uri
        self.build_ui()
        await self.refresh(attachments=[new_photo])

build_ui() clears the tree and re-adds the rebuilt card; refresh() ships the new component bytes plus the replacement attachments in a single edit. attachments= replaces the message's complete attachment list -- previously-attached files not present in the new list are removed. Use an empty list (attachments=[]) to clear all attachments without uploading new ones.

Persistent views¶

PersistentLayoutView and PersistentView survive bot restarts. attachment:// references already present in the persisted component tree resolve from Discord's stored copy of the original upload -- the bytes survive as long as the message itself does, so no re-upload is required at restart.

References introduced after restart (inside on_restore or any later rebuild) need a matching discord.File passed through refresh(attachments=[...]); otherwise Discord renders the reference as unresolved.

Composing V2 layouts¶

A V2 view is a tree, and most layout questions reduce to one thing: what nests inside what. The allowed shape is small enough to hold in your head, and only two nestings are ever illegal.

The nesting tree¶

LayoutView (the view)
  - Container  (a card)         the main grouping block
      - TextDisplay             markdown text
      - Section                 text + one accessory (button or thumbnail)
      - ActionRow               buttons OR one select
      - MediaGallery            1-10 images
      - File                    a downloadable file
      - Separator               a divider or gap
  - ActionRow                   (also valid at the top level)
  - Section                     (also valid at the top level)
  - MediaGallery / File / TextDisplay / Separator

The two surprising illegal nestings are: a Container cannot hold another Container, and a Section cannot hold another Section. The rest follow type logic -- a bare Button or Select needs an ActionRow, and a Thumbnail belongs only as a Section accessory.

What goes where¶

Top level (the view): Containers (cards), ActionRows, Sections, MediaGalleries, Files, TextDisplays, Separators. A bare Button, Select, or Thumbnail is not valid at the top level -- it must live inside an ActionRow (buttons/selects) or a Section (thumbnail).
Inside a card (Container): everything the top level accepts except another card. Text, sections, action rows (which may wrap a select), galleries, and dividers all nest inside a card.
Inside an ActionRow: up to 5 buttons, or exactly one select -- not both.
Inside a Section: one to three TextDisplay children plus one accessory (a button or a thumbnail).

Selects and choice_rows belong inside cards¶

A card accepts ActionRows, and a choice_row is an ActionRow (buttons, or a single select), so a dropdown belongs inside the card it relates to, not stranded as a separate row below it. A raw StatefulSelect drops in the same way once wrapped in an ActionRow -- choice_row does that wrapping for you:

self.add_item(card(
    "## Filters",
    key_value(self._summary()),
    choice_row(LEAGUES, selected=self.league, on_select=self._pick),  # inside the card
))

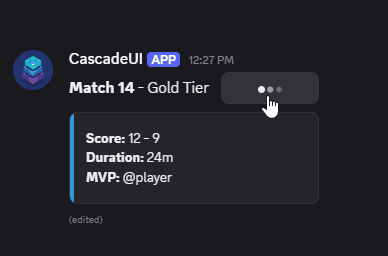

Reveal a region inside a card¶

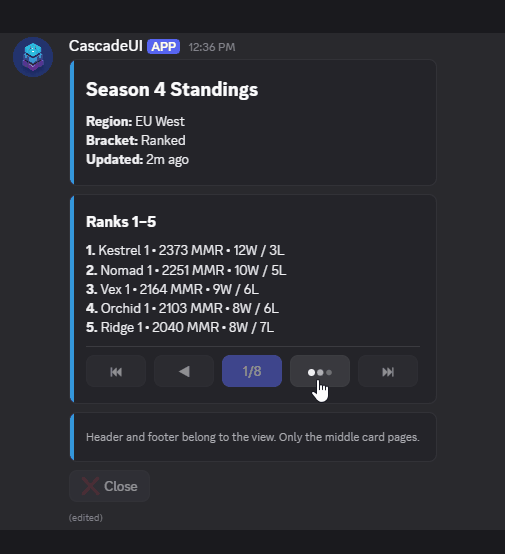

Because Collapsible.render() and PaginatedRegion.controls() return raw components rather than a pre-wrapped card, you choose where they land. Splat them into a card() and the revealed region expands inside the card:

def build_ui(self):
    self.clear_items()
    self.add_item(card(
        "## Filters",
        key_value(self._summary()),
        *self.league_picker.render(self),   # trigger + reveal, inside the card
    ))

The single caveat is the Container-in-Container rule: a reveal callable must not return a card when you splat it into a card. choice_rows, sections, and text are all fine -- each is either an ActionRow or a Container-legal child.

The rules below spell out every constraint and how CascadeUI's pre-flight validator enforces them.

V2 Placement Rules¶

Discord's V2 component system has strict rules about which component types can nest inside which. discord.py only enforces a small subset of those rules at construction time -- the rest are enforced by Discord's API server when send() runs, returning HTTP 400 with terse error text far from the construction site. CascadeUI's V2 builders sidestep this entire problem because each builder hardcodes a known-safe shape, and an opt-out send-time validator catches violations in any tree built outside the builders.

What discord.py enforces at construction¶

V1 View rejects V2 items (TextDisplay, Container, Section, etc).
Section allows at most 3 children.
Section requires an accessory= kwarg.
ActionRow width budget = 5 (Button = 1 unit, Select = 5 units).
add_item rejects non-Item, non-str types.

Everything else passes construction silently. Discord rejects the message when you call send().

What Discord enforces at send time¶

Composition	discord.py	Discord API
`Section` accessory must be `Button` or `Thumbnail`	accepts	rejects
`Section` children must all be `TextDisplay`	accepts	rejects
`Container` children must be `ActionRow`, `TextDisplay`, `Section`, `MediaGallery`, `File`, or `Separator`	accepts	rejects
Containers cannot nest	accepts	rejects
Sections cannot nest	accepts	rejects
Standalone `Button` / `Select` / `Thumbnail` at LayoutView top level	accepts	rejects
`ActionRow` children must be `Button` or `Select`	accepts	rejects
`Thumbnail` outside a `Section` accessory slot	accepts	rejects
`Label` / `RadioGroup` / `CheckboxGroup` / `Checkbox` / `FileUpload` at any LayoutView position	accepts	rejects (Modal-only)
`Container` must hold at least 1 child (empty)	accepts	rejects
`Section` must hold 1-3 children (empty)	accepts (empty)	rejects
`ActionRow` must hold at least 1 child (empty)	accepts	rejects
`MediaGallery` must hold 1-10 items	accepts	rejects
Two components share a `custom_id`	accepts	rejects (code 50035)

Builders are guardrails¶

Routing through CascadeUI's V2 builders sidesteps every rule in the table above. Each builder hardcodes a Discord-API-valid shape:

card() always produces a top-level Container with valid children.
image_section() always produces Section(TextDisplay, accessory=Thumbnail).
action_section() / toggle_section() / link_section() always produce Section(TextDisplay, accessory=Button-variant).
button_row() always produces ActionRow(Button, Button, ...) capped at 5.
choice_row() always produces one ActionRow (buttons or a StatefulSelect), capped at 5 buttons / 25 options.
gallery() / file_attachment() always produce a properly-wrapped media component.

A user who composes views entirely from builders cannot construct a tree Discord rejects (size limits aside). The escape hatch is dropping to raw discord.ui primitives -- where the validator below picks up the slack.

Pre-flight validation¶

Every V2 view (StatefulLayoutView and subclasses) gets a placement validator that runs before every Discord round-trip. Three seams call it: the initial send (_send_pipeline), every state-driven refresh() after the render-hash short-circuit, and the in-place edits emitted by push() / pop() navigation. Mid-session shape changes (Wizard step swaps, Form section toggles, Tab body rebuilds) get caught at the seam instead of surfacing as terse HTTP 400 from message.edit().

When the assembled component tree contains a composition Discord would 400 on, the validator raises a clear ValueError naming the violation node, the path through the tree, and the suggested fix:

ValueError: Invalid V2 placement: Container cannot be a child of Container.
  Path: MyDashboard -> Container[0] -> Container[0]
  Discord rejects this composition with HTTP 400.
  Fix: Containers cannot nest. Move the inner Container's children up to
       the outer Container, or split into a separate top-level Container.

The path uses bracket indices on each segment so the offending node is unambiguous when the same type appears multiple times at the same depth.

Skipped refreshes (the render-hash digest matches the previous send) bypass validation entirely -- nothing changed, the previous send already validated the tree. The cost on every other refresh is one linear walk over the component tree, microseconds for typical views.

Duplicate custom_ids¶

Discord also rejects a message whose component tree contains two components with the same custom_id (HTTP 400, code 50035). This is a uniqueness rule, not a placement one, so it runs for every view (V1 StatefulView as well as V2) and is not governed by validate_placement. The same three seams walk the tree and raise a directed ValueError naming the repeated id:

ValueError: Duplicate component custom_id: 'choice' appears more than once in ConfigView.
  Discord rejects this message with HTTP 400 (code 50035: component custom id cannot be duplicated).
  Fix: Give each component a distinct custom_id. A builder used more than once
       (choice_row, PaginatedRegion, Collapsible) needs a distinct custom_id=/key= per call.

Auto-generated ids never collide here: CascadeUI position-anchors them before send. Only caller-supplied ids repeat, most often a builder called twice with its default (choice_row, PaginatedRegion, Collapsible). Modal applies the same rule to its inputs at construction: two inputs whose labels derive the same custom_id raise immediately rather than silently overwriting each other at submit.

Opting out¶

Set validate_placement = False on the view class for a documented escape hatch:

class MyDashboard(StatefulLayoutView):
    validate_placement = False  # tree uses a composition Discord accepts
                                # that the built-in validator rejects

The recommended use case is narrow: the validator's matrix lags a Discord or discord.py update. Any other reason to opt out signals an actual placement bug. Prefer fixing the tree. validate_placement = False disables only the placement matrix; the duplicate-custom_id check is a separate, always-on guard and still runs.

Grid Helpers¶

Two helpers for building grid-based UIs:

`emoji_grid(rows, cols, *, fill="⬛", row_labels=None, col_labels=None, corner=None, cell_sep=" ")`¶

Returns an EmojiGrid -- a live TextDisplay subclass that rewrites its content on every mutation:

from cascadeui import emoji_grid

grid = emoji_grid(10, 10, fill="🟦", row_labels="alpha", col_labels="numeric")
grid[(2, 3)] = "🔥"       # Set single cell
grid.fill_rect((0, 0), (2, 2), "⬜")  # Fill rectangle
grid.clear()               # Reset all cells to fill

Retained Mode vs Immediate Mode¶

EmojiGrid supports two usage patterns:

Retained mode -- mutate cells in place; content auto-rewrites. The grid object holds its own state and each mutation immediately updates the rendered string. Ideal for persistent grids where the board evolves incrementally:

# Battleship pattern: mutate cells, grid auto-renders
grid[(row, col)] = hit_emoji
self.build_ui()  # grid.content is already updated

Immediate mode -- rebuild from external state each render. The grid is reconstructed from scratch on every build_ui() call, using external state as the source of truth:

# Dashboard pattern: rebuild from state
grid = emoji_grid(5, 5, fill="⬛")
for pos, value in self.state_data.items():
    grid[pos] = value

Both are valid patterns. Use retained mode when the grid IS the state; use immediate mode when external state drives the rendering.

Axis Labels¶

`row_labels`	`col_labels`	Result
`None`	`None`	No labels
`"alpha"`	`None`	A-Z row labels only
`None`	`"numeric"`	0-9 column header only
`"alpha"`	`"numeric"`	Both, with corner character

Presets: "alpha" (regional indicators, max 26) and "numeric" (keycap emoji, max 10). Custom Sequence[str] also accepted.

Mutation API¶

Operation	Example
Single cell	`grid[(r, c)] = "🔥"`
Multiple cells	`grid[[(0,0), (1,1)]] = "⭐"`
Rectangle fill	`grid.fill_rect((0,0), (2,2), "⬜")`
Row by index	`grid[0] = "🟥"`
Clear all	`grid.clear()`

`button_grid(rows, cols, cell_factory)`¶

Packs buttons into ActionRow components:

from cascadeui import button_grid

rows = button_grid(3, 3, lambda r, c: StatefulButton(
    label=self.board[r][c],
    callback=self._make_move(r, c),
))
for row in rows:
    self.add_item(row)

Discord caps at 5 rows × 5 buttons. Both dimensions must be 1-5.

Behavioral Wrappers¶

Modify component behavior without changing the component:

Wrappers consume the interaction response

All three wrappers attempt to use interaction.response internally (with an is_done() fallback for auto-defer compatibility). Wrapped callbacks should use self.respond(interaction, ...) for any replies -- it handles the response/followup routing automatically.

`with_loading_state(button)`¶

Disables the button and changes its label to "Loading..." while the callback runs.

`with_confirmation(button, *, message, confirmed_message, cancelled_message)`¶

Shows a confirmation prompt before executing the callback.

`with_cooldown(button, *, seconds, scope="user")`¶

Per-user (default), per-guild, or global cooldown.

V2 Composite Components¶

A composite component holds state across interactions and lives inside a view, sitting between the two simpler shapes: a builder returns a one-shot tree and forgets it, a view owns the whole message.

`PaginatedRegion`¶

Pages one slice of a StatefulLayoutView's tree while the host renders everything else. Reach for PaginatedLayoutView when the page list is the message; reach for PaginatedRegion when one section of a multi-section view needs its own page index while the surrounding layout -- a header, other cards, a second list -- stays put.

Why PaginatedLayoutView takes a formatter but PaginatedRegion does not

A PaginatedLayoutView owns the whole message, so it needs a formatter to render each page -- there is no other render hook to call. A PaginatedRegion lives inside a host view whose build_ui() or on_load() already renders everything, so it only slices the item list and the host renders the slice alongside the rest of the layout.

from cascadeui import StatefulLayoutView, PaginatedRegion, action_section, card

class TaskListView(StatefulLayoutView):
    def __init__(self, tasks, **kwargs):
        super().__init__(**kwargs)
        self.tasks = tasks
        self.pager = PaginatedRegion(per_page=6)

    def build_ui(self):
        self.clear_items()
        self.pager.items = self.tasks
        rows = [action_section(t.title, label="Open", callback=self._open(t))
                for t in self.pager.page_items]
        self.add_item(card("## Tasks", *rows, *self.pager.controls(self)))

controls(self) captures the host and returns the nav row (empty on a single page). A page click re-runs the host's render path and re-slices. Each region keeps its own page index, so two regions can share a view if you give them distinct key values. Customization mirrors PaginatedLayoutView -- subclass and override the {first,prev,indicator,next,last}_button_{label,emoji,style} class attributes, jump_threshold, or the on_page_changed hook. See the API reference for the full surface.

`Collapsible`¶

A trigger button that toggles an inline region of revealed content -- the disclosure/expander pattern. Use it when a button should reveal more controls (a choice_row, a select, a form) in place and hide them again, instead of pushing a new view or sending a follow-up. Pass a reveal callable that returns the content; Collapsible owns the toggle state and drives the host's render path on each click.

from cascadeui import Collapsible, choice_row

class FilterView(StatefulLayoutView):
    def __init__(self, **kwargs):
        super().__init__(**kwargs)
        self.league_picker = Collapsible(
            label="Edit Leagues",
            expanded_label="Done",
            reveal=lambda: choice_row(
                LEAGUES, selected=self.league, on_select=self._pick_league
            ),
        )

    def build_ui(self):
        self.clear_items()
        self.add_item(card("## Filters", key_value(self._summary())))
        for item in self.league_picker.render(self):
            self.add_item(item)

    async def _pick_league(self, interaction, value):
        self.league = value
        self.league_picker.collapse()   # collapse after the pick
        self.build_ui()
        await self.refresh()

render(self) returns the trigger alone while collapsed, or the trigger plus the reveal() content while expanded (order via trigger_first). The collapse policy is the caller's -- collapse() after a revealed action finishes, or leave it open for multi-step use. The trigger relabels and restyles between states via expanded_label / expanded_style / expanded_emoji, and two collapsibles in one view need distinct key values.

expand() / collapse() set the state programmatically and expanded reads it; the on_toggle(expanded) hook fires after every open or close for async prefetch or logging.

In-card disclosure with `summary`¶

By default the trigger is a button on its own row. When the disclosure belongs inside a card -- the Edit button sitting beside a line of summary text rather than in a row of its own -- pass a summary callable (zero-argument, synchronous, read on every render like reveal). The trigger then renders as an action_section: a Section carrying the summary text with the trigger button as its accessory, so the whole disclosure splats into one card(...).

self.representation = Collapsible(
    label="Edit",
    expanded_label="Done",
    emoji="✏️",
    summary=lambda: f"Flagged beside your name: **{self.represented_name}**.",
    reveal=lambda: ActionRow(self._represented_select()),
    key="representation",
)

def build_ui(self):
    self.clear_items()
    self.add_item(card("### 🏳️ Representation", *self.representation.render(self)))

When summary returns an empty value (data not loaded yet), the trigger falls back to the bare button rather than rendering an empty Section.

V1 Composite Components¶

V1 only

These use row-based layout and work with StatefulView only.

ConfirmationButtons, PaginationControls, ToggleGroup, ProgressBar -- pre-built V1 component groups that attach to a view via .add_to_view(). See cascadeui.components.patterns.v1 for the full API.

Utilities¶

`slugify(text)`¶

Converts display strings to safe custom_id fragments:

from cascadeui import slugify

slugify("Color Roles")  # "color_roles"
slugify("He/Him")       # "he_him"
slugify("Tickets #1")   # "tickets_1"
